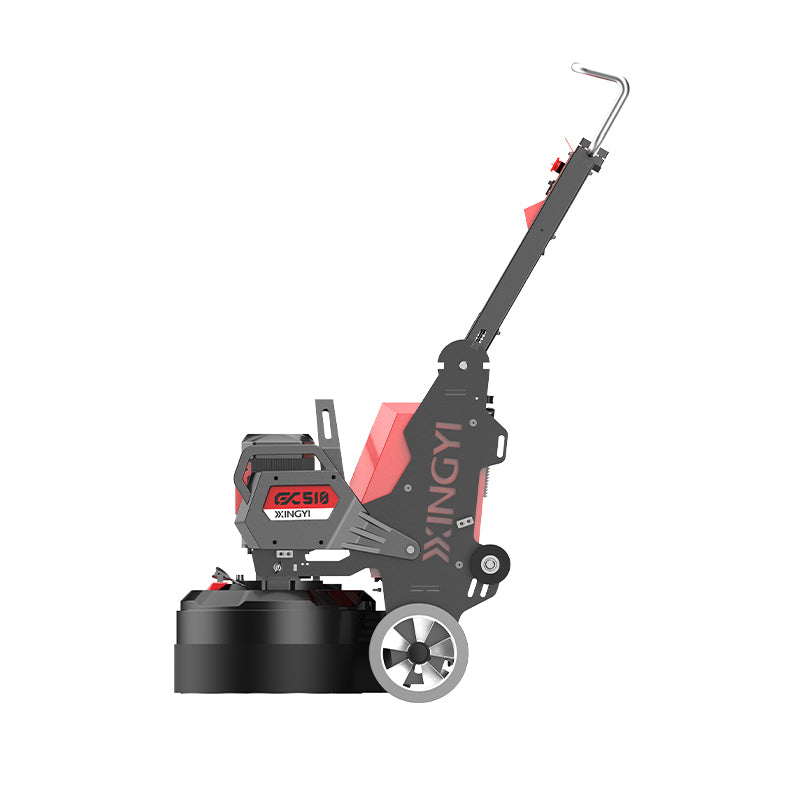

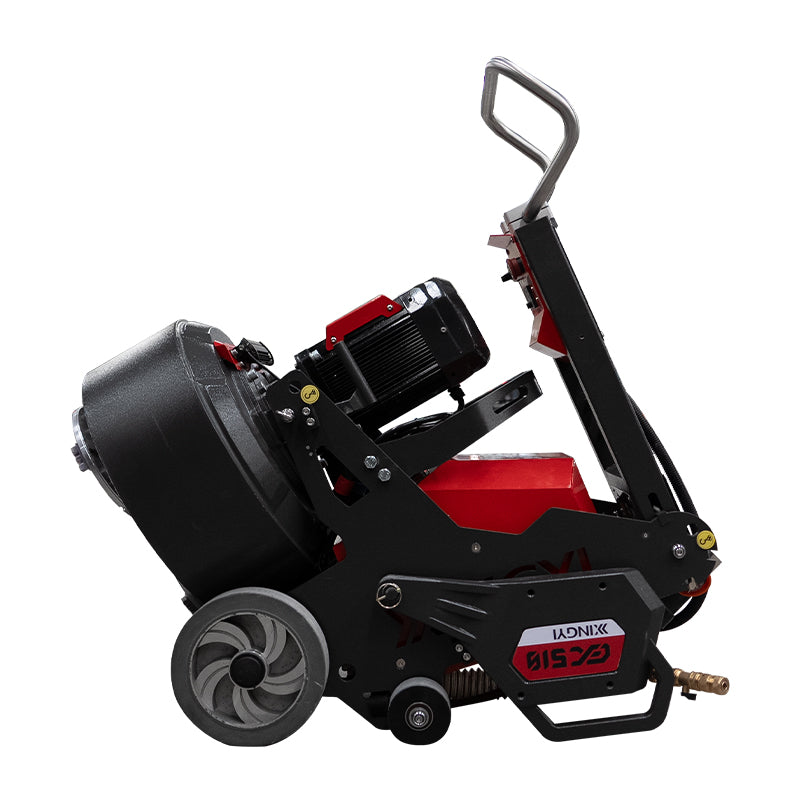

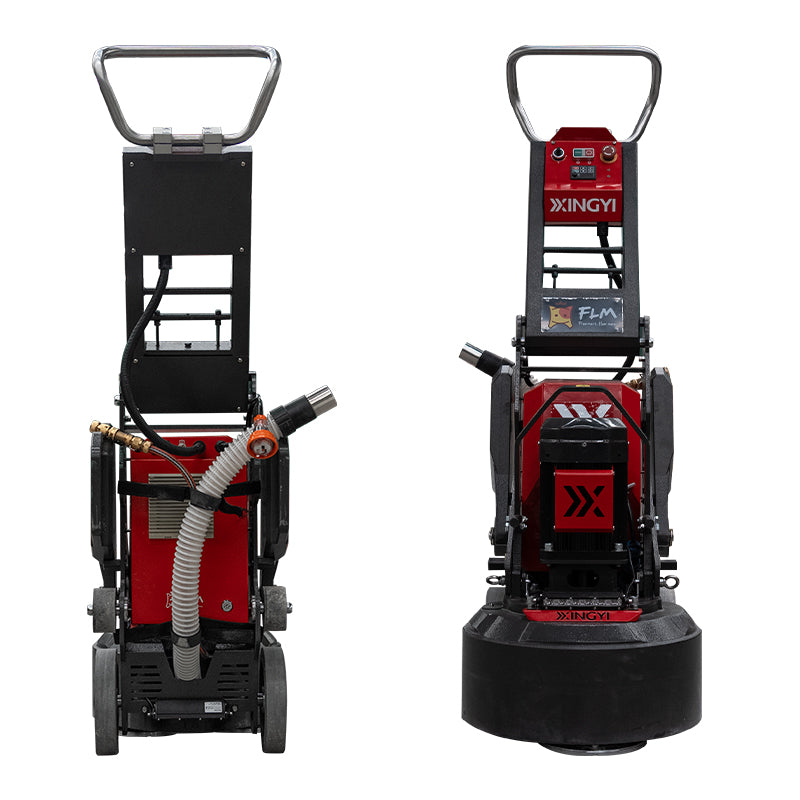

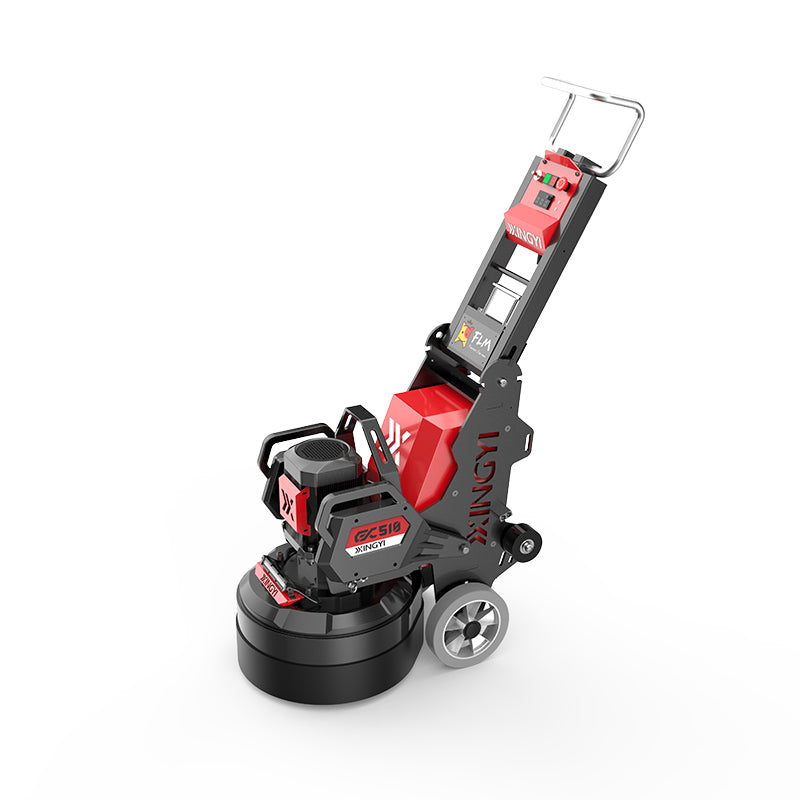

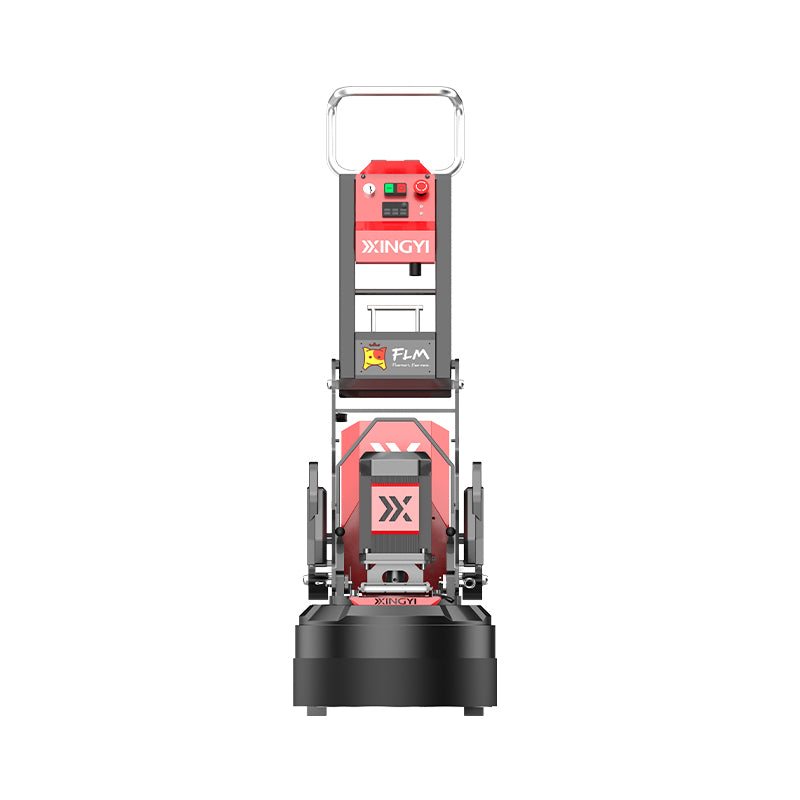

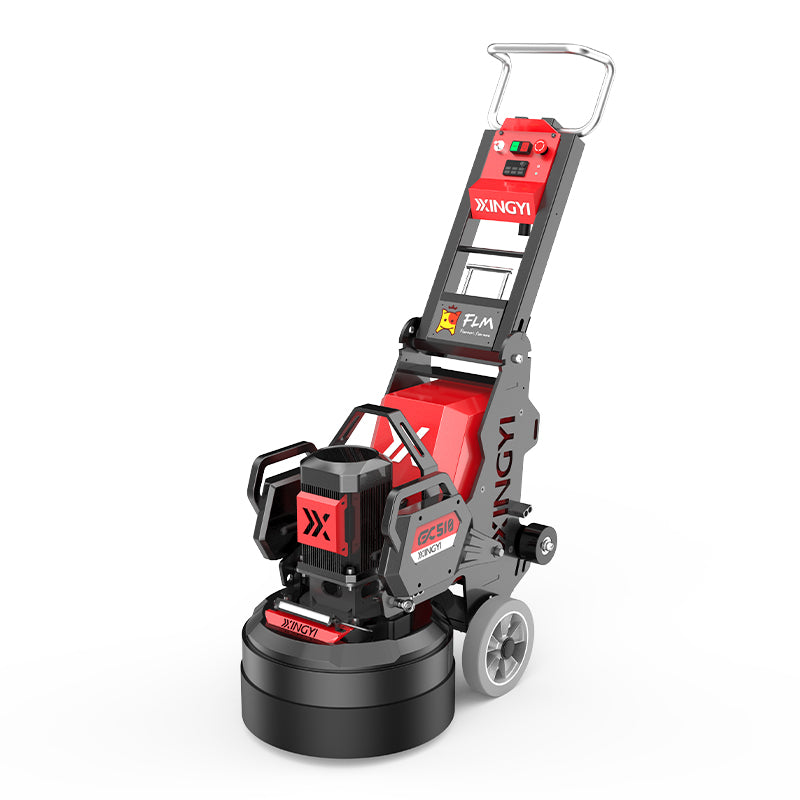

XINGYI GX510 Planetary Concrete Floor Grinder
XINGYI GX510 Planetary Concrete Floor Grinder
Description
Description
The XINGYI GX510 Planetary Floor Grinder: Single Phase Concrete Floor Grinder
When it comes to high-performance concrete floor grinders, the XINGYI GX510 stands in a class of its own. This powerful single phase floor grinding machine is engineered to chew through tough floors while running on standard 220V household power.

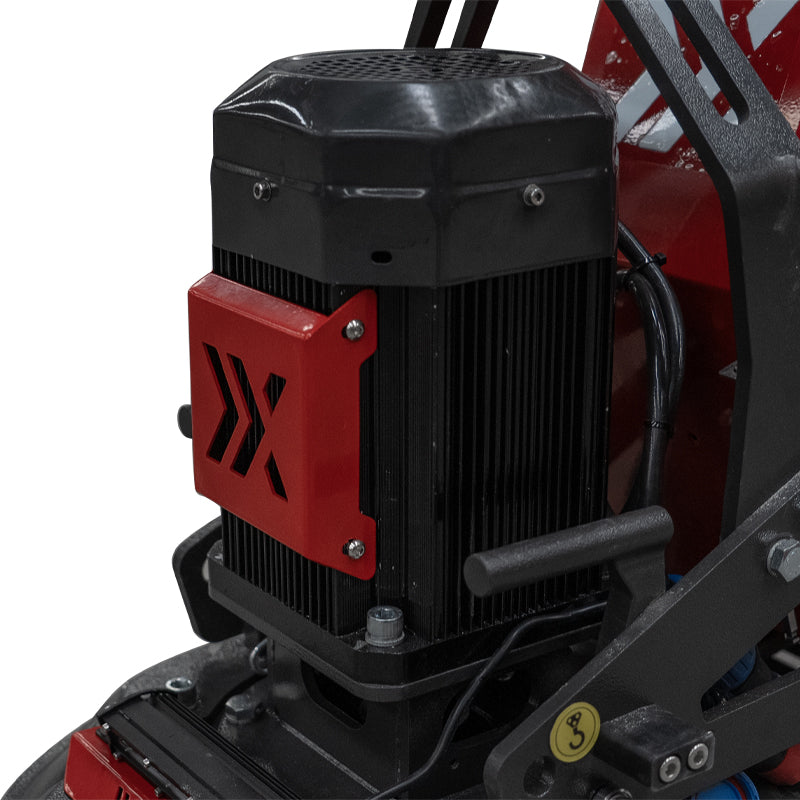

Designed specifically for uneven, damaged, and mixed home or commercial construction sites, the GX510 achieves the ultimate balance between stability, torque, and portability. Unlike bulky, hard-to-maneuver industrial floor grinding machines, the GX510 offers a compact design without sacrificing heavy pressure or stability. Equipped with a 4KW Permanent Magnet Motor and a Super Capacitor Soft Start, it delivers the aggressive grinding power needed for professional concrete preparation.
Whether you are leveling concrete, removing old coatings, or polishing, the GX510 is the ultimate walk-behind solution in the world of single-phase floor grinders.
FEATURES & SPECIFICATIONS
CORE FEATURES & ACCESSORIES
| Category | Details |
|---|---|
| Main Features | Full-scenario Adaptation, Compact Design, Super Capacitor Soft Start, 4KW Permanent Magnet Motor, Heavy-duty Gearbox, Heavy Pressure & Stability |
| Standard Accessories | Pad Holder (*3), Dust Skirt (*1), Tool Kit (*1), Plugs (*1) |
| Ideal Applications | Uneven, damaged, and mixed home/commercial construction sites |
TECHNICAL SPECIFICATIONS
| Specification | Value |
|---|---|
| Power Source | Corded (1 Phase) |
| Voltage / Frequency | 220 V / 50/60 Hz |
| Engine / Motor Power | 4 KW/ 5.5 HP |
| Rated Current | 14.5 A |
| Pin | 1P+N+E |
| Type of Operation | Walk-behind |
| Grinding Width | 490 mm / 19.29 in |
| Number of Discs | 3 |
| Disc Diameter | 220 mm / 8.66 in |
| Grinding Disc Speed | 350 rpm (Min) – 1500 rpm (Max) |
| Max Grinding Pressure | 147 kg / 324 lbs |
| Dimensions (L x W x H) | 1096 x 500 x 1597 mm |
| Weight | 256 kg |
*Note: Weight reflects the complete product without side packed articles.
DOWNLOAD GX510 BROCHURE
