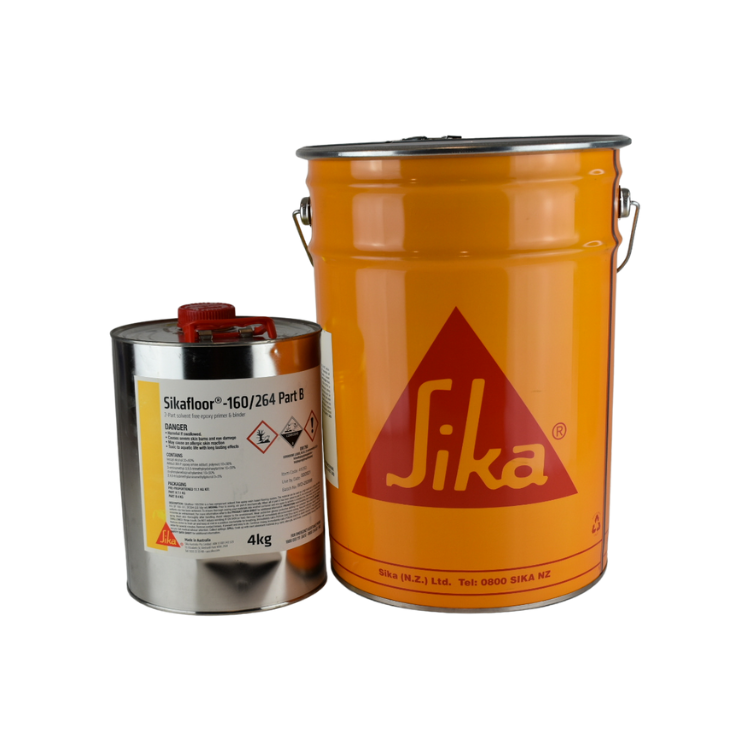

Sikafloor 161 is an economic, two part, low viscosity epoxy resin. "Total solid epoxy composition according to the test method Deutsche Bauchemie e.V. (German Association for construction chemicals)"
NOTE: Sikafloor 161 is Sika's Sikafloor 264 System without pigment.
- For priming concrete substrates, cement screeds and epoxy mortars
- For low to medium absorbent substrates
- Primer for the Sikafloor®-MultiDur and Sikafloor®- MultiFlex flooring systems
- Binder for levelling mortars and mortar screeds
ADVANTAGES
- Low viscosity
- Good penetration
- Excellent bond strength
- Can be accellerated using Sikafloor Booster
- Can be used on substrates with an elevated moisture content <6%pbw
- Multi-purpose
COLOUR
Clear
PACKAGING
| Part A | 13.09 kg containers |
| Part B | 4.0 kg containers |
| Part A+B | 17.09 kg ready to mix units |
Mixing ratio
Part A : part B = 77 : 23 (by weight) - 2.1 : 1 (by volume)
Ambient air temperature
+10 °C min. / +30 °C max.
Relative air humidity
80 % r.h. max.
Dew point
Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.
Note: Low temperatures and high humidity conditions increase the probability of blooming.
Substrate temperature
+10°C min. / +30°C max.
Substrate moisture content
Maximum 6 % moisture content using the Sika® - Tramex meter (at the time of application).
Please note that the moisture content must be < 6 % pbw when using the CM measurement or Oven-dry-method.
No rising moisture according to ASTM (Polyethylene-sheet).
Pot Life
Temperature Time
+10 °C ~ 50 minutes
+20 °C ~ 25 minutes
+30 °C ~ 15 minutes
Curing time
Before applying solvent free products on Sikafloor®-161 allow:
Substrate temperature Minimum Maximum
+10 °C 24 hours 4 days
+20 °C 12 hours 2 days
+30 °C 8 hours 24 hours
Before applying solvent containing products on Sikafloor®-161 allow:
Substrate temperature Minimum Maximum
+10 °C 36 hours 6 days
+20 °C 24 hours 4 days
+30 °C 16 hours 2 days
Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Consumption
Coating System Product Consumption
Priming 1–2 x Sikafloor®-161 1–2 × 0.35–0.55 kg/m²
Levelling mortar fine (surface roughness < 1 mm) 1 pbw Sikafloor®-161 + 0.5 pbw quartz sand (0.1–0.3 mm) 1.7 kg/m²/mm
Levelling mortar medium (surface roughness up to 2 mm) 1 pbw Sikafloor®-161 + 1 pbw quartz sand (0.1–0.3 mm) 1.9 kg/m²/mm)
Intermediate layer (self-smoothing 1.5 to 3 mm) 1 pbw Sikafloor®-161 + 1 pbw quartz sand (0.1–0.3 mm) 1.9 kg/m²/mm
+ optional broadcast quartz sand 0.4–0.7 mm ~ 4.0 kg/m²
Bonding bridge 1–2 × Sikafloor®-161 1–2 × 0.3–0.5 kg/m²
Epoxy screed (15–20 mm layer thickness ) / Repair Mortar 1 pbw Sikafloor®-161 + 8 pbw quartz sand 2.2 kg/m²/mm
Note: These figures are theoretical and do not allow for any additional material required due to surface porosity, surface profile, variations in level or wastage etc.
