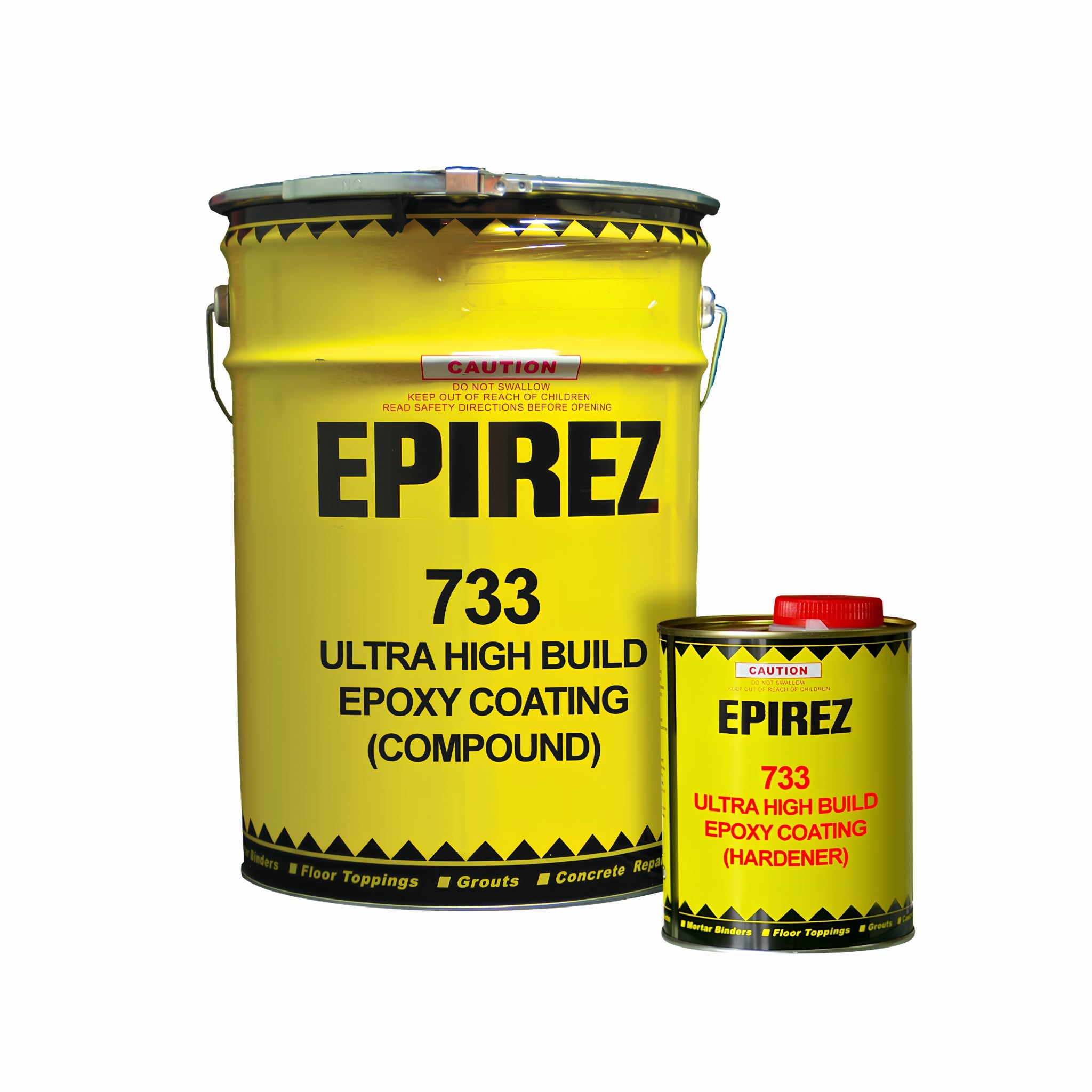

EPIREZ Ultra High Build Epoxy Coating 733 is a solvent-free, high-performance epoxy coating designed to protect and repair concrete and steel exposed to flow wear, chemicals and demanding service conditions.
The coating is designed for infrastructure assets, splash zone areas and industrial environments where a high-build protective system is required. It can be applied in a single spray application at 3 mm DFT or greater, helping reduce application time and labour requirements compared with multiple thinner coating applications.
Ultra High Build Epoxy Coating 733 can cure underwater and withstand early immersion, making it suitable for maintenance work on splash zone piling. It can be applied at low tide and continue curing under immersed conditions to provide ongoing protection to wharf piling.
The coating provides excellent adhesion to wet or dry concrete, high mechanical strength, abrasion and erosion resistance, and resistance to a broad range of acids, alkalis and solvents.
Key Features and Benefits
- Ultra high-build application: Designed for 3 mm DFT or greater in one spray application.
- Underwater curing: Can cure underwater and withstand early immersion.
- Splash zone protection: Suitable for maintenance coating of piling and marine infrastructure.
- Excellent adhesion: Bonds to wet or dry concrete.
- Chemical resistance: Resists a broad range of acids, alkalis and solvents.
- High mechanical strength: Ultimate compressive strength is greater than 75 MPa.
- Abrasion and erosion resistance: Designed for demanding infrastructure and industrial environments.
- Solvent-free: Contains 100% solids and 0 g/L VOC.
- Non-shrink: Designed for protective concrete and steel coating applications.
- Potable water contact: Meets AS/NZS 4020:2018 requirements for use in contact with potable water.
Where Can EPIREZ Ultra High Build Epoxy Coating 733 Be Used?
Ultra High Build Epoxy Coating 733 is designed for demanding infrastructure, marine, wastewater and industrial applications.
- Splash zone piling
- Sewer and manhole lining
- Offshore oil and gas installations
- Transmission pipelines
- Heavy-duty applications in chemical plants
- Protective bunding
- Sewer and wastewater piping
- Water reservoir repairs
Ultra High-Build Application
EPIREZ® Ultra High Build Epoxy Coating 733 is designed to achieve a dry film thickness of 3 mm or greater using appropriate spray equipment and wet-on-wet passes.
For large projects, plural component airless spray equipment is recommended. The product is not ideal for conventional spray, brush or roller application.
A single application at this thickness is designed to minimise application time and labour requirements.
Coverage and Kit Size
| Pack Size | Estimated Coverage | Application Thickness |
|---|---|---|
| 16 L | 5.3 m² | 3 mm DFT |
The stated coverage is based on a 16 L kit applied at 3 mm thickness.
Splash Zone and Underwater Applications
Ultra High Build Epoxy Coating 733 can cure underwater and withstand early immersion. This makes it suitable for maintenance applications involving splash zone piling and marine infrastructure.
The coating can be applied at low tide and continue curing under immersed conditions, helping provide ongoing protection to wharf piling.
Surface Preparation
Proper surface preparation is important before applying Ultra High Build Epoxy Coating 733.
Concrete
- Remove previous coatings and all loose material.
- New concrete must be at least 28 days old.
- Remove oil and grease using a suitable surface degreaser.
- Hose off using high-pressure water.
- Use high-pressure water, abrasive blasting or a similar method to expose firmly adhered aggregate.
- Allow the surface to dry before application.
Alternatively, concrete can be acid etched using 1 part commercial muriatic acid to 2 parts clean water. Neutralise the surface by washing with fresh water and allow it to dry.
Steel
Steel should be abrasive blast cleaned to AS 1627 Part 4:2005 to a Class 3 white-metal finish with a minimum profile height of 75–100 microns.
Mixing Instructions
The mixing ratio is 1 part Hardener to 3 parts Compound.
- Use full units where practical because the components are pre-measured.
- Measure enough material for approximately 30 minutes of use.
- Mix thoroughly using a low-speed power mixer at approximately 400 rpm.
- Ensure material from the sides, container lip and stirrer is fully incorporated.
- Avoid air entrapment during mixing.
- Keep the mixer propeller below the liquid line.
For large projects, plural component airless spray equipment is the preferred application method.
Application Conditions
- Application temperature: 10°C to 30°C
- Minimum application temperature: 10°C
- Maximum relative humidity: 85%
- Maximum relative humidity in confined spaces: 50%
- The surface must be at least 3°C above the dew point.
Applying epoxy below 21°C lengthens functional cure and pot life times. Applying above 21°C shortens them.
Drying and Cure Times
- Pot life at 25°C: 30 minutes
- Tack-free time at 25°C: 6 hours
- Hardening time at 25°C: 24 hours
- Full chemical resistance: 7 days at 25°C
For optimum chemical resistance, allow the coating to cure for 7 days at 25°C before chemical exposure.
Testing and Australian Standards
EPIREZ® Ultra High Build Epoxy Coating 733 has been independently tested and meets the stated product performance requirements for:
- AS/NZS 4020:2018 for use in contact with potable water.
- Sydney Water SPEC 204 for rehabilitation and corrosion protection of sewers using epoxy coating.
- WSAA WSA201:2021 v2.3, Manual for Selection and Application of Protective Coatings, C8 – Ultra High Build Epoxy / Polyurethane Mortar.
The coating also complies with the stated requirements for cathodic disbondment according to AS 3750.2 / AS 4352:2005.
Important Product Limitations
- Do not apply below 10°C.
- Do not apply when relative humidity exceeds 85%.
- In confined spaces, relative humidity should remain below 50%.
- The surface must be at least 3°C above the dew point.
- The product is not ideal for conventional spray, brush or roller application.
- Allow 7 days of cure at 25°C for optimum chemical resistance.
- Longer curing times are required at lower temperatures.
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | EPIREZ® Ultra High Build Epoxy Coating 733 |
| Previous Name | EPIREZ® 733 |
| Product Type | Ultra high-build epoxy coating |
| Solids Content | 100% |
| VOC Content | 0 g/L |
| Mixing Ratio | 1 Part Hardener : 3 Parts Compound |
| Pot Life @ 25°C | 30 minutes |
| Tack Free Time @ 25°C | 6 hours |
| Hardening Time @ 25°C | 24 hours |
| Full Chemical Resistance | 7 days at 25°C |
| Mixed Viscosity | 12,000–18,000 cP |
| Application Temperature | 10°C to 30°C |
| Application Thickness | 3 mm DFT or greater |
| Coverage | 5.3 m² per 16 L kit at 3 mm thickness |
| Ultimate Compressive Strength | >75 MPa |
| Flexural Strength | >10 MPa |
| Tensile Strength | >10 MPa |
| Concrete Tensile Bond Strength | 3.8 MPa (concrete failure) |
| Water Permeability | 1.2 × 10-16 m·s-1 |
| Cathodic Disbondment | Complies with requirements of AS 3750.2 / AS 4352:2005 |
| Package Size | 16 L |
| Shelf Life | 2 years |
Important: Always read the current manufacturer's Technical Data Sheet before mixing, surface preparation or application.
