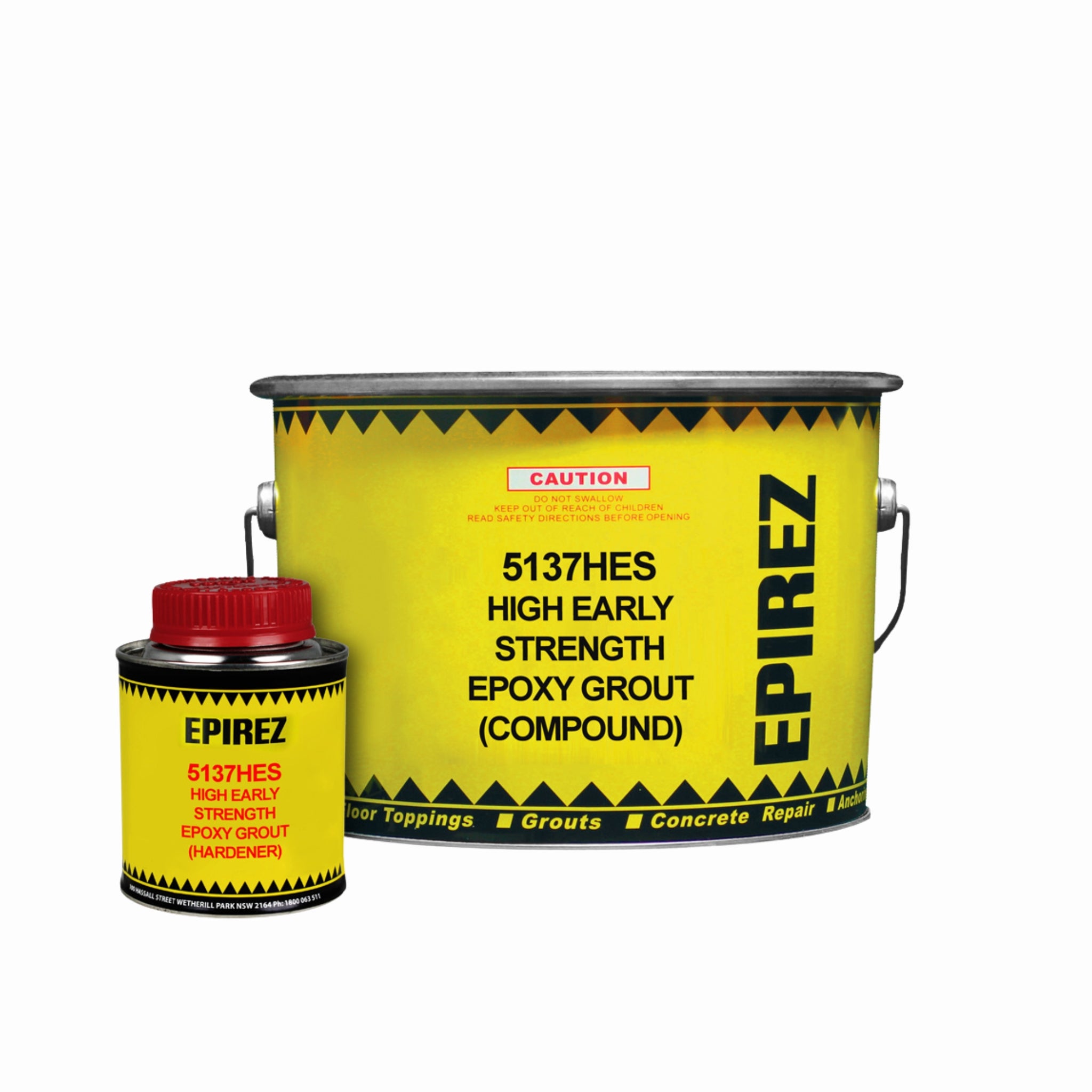

EPIREZ High Early Strength Epoxy Grout (5137HES)
Heavy-duty, non-shrink epoxy grout with fast strength development.
EPIREZ High Early Strength Epoxy Grout (5137HES) is a heavy-duty, non-shrink epoxy grout designed for applications requiring high mechanical strength, excellent flow and rapid strength development. Its smooth, aggregate-free formulation flows into fine voids and cavities down to approximately 5 mm, forming an extremely tough and impact-resistant backing.
Designed for demanding industrial and structural applications, this high-strength epoxy grout provides long-term support for machinery, equipment and structural components, including applications in harsh and corrosive environments. It is particularly suited to heavy-duty rail machinery grouting where rapid curing and early strength development are required.
EPIREZ High Early Strength Epoxy Grout was previously known as EPIREZ® 5137 HES.
Key Features
- Non-shrink epoxy grout for reliable long-term support
- High mechanical and compressive strength
- Fast strength development for applications requiring rapid return to service
- Aggregate-free formulation for easy mixing and application
- Good flow characteristics for filling fine voids and cavities
- Good chemical resistance for demanding environments
- Suitable for cooler temperature applications from 10°C
- Suitable for pours from approximately 5 mm to 50 mm, depending on pour volume
Applications
EPIREZ High Early Strength Epoxy Grout is suitable for heavy-duty grouting applications, including:
- Heavy-duty rail machinery grouting
- Crushing equipment backing
- Bridge footing grouting
- Machine bases in corrosive environments
- High-strength bearing supports
- Printing press grouting
- Shipboard machinery
- Industrial equipment and machinery bases
Technical Information
| Property | Typical Value |
|---|---|
| Mixed Colour | Grey |
| Mixing Ratio by Volume | 1 part Hardener : 5 parts Compound |
| Mixing Ratio by Weight | 1 part Hardener : 10 parts Compound |
| Initial Mixed Viscosity at 25°C | 20 Pa·s |
| Work Time at 25°C | Approximately 20 minutes |
| Work Time at 15°C | Approximately 40 minutes |
| Setting Time at 25°C | Approximately 1 hour |
| Setting Time at 15°C | Approximately 2 hours |
| Cure Time at 25°C | Approximately 6 hours |
| Cure Time at 15°C | Approximately 12 hours |
| Ultimate Compressive Strength | >80 MPa |
| Compressive Modulus | 4.7 GPa |
| Elongation at Break | 1% |
| Tensile Modulus | 2.9 GPa |
| Brinell Hardness | 57 |
Coverage & Yield
10 kg of EPIREZ High Early Strength Epoxy Grout produces approximately 6 litres of mixed grout.
Suitable pour thickness is approximately 5–50 mm, depending on the volume and specific application. For specific project requirements, consult the manufacturer's technical department.
Surface Preparation
Prepare the substrate as required for adhesion or release. New concrete should be at least 28 days old. Formwork that provides a suitable material head can help the grout flow into finer cavities and voids.
Surface preparation requirements may vary depending on site conditions and the intended application. An on-site adhesion test is recommended as part of the project's quality assurance process.
Mixing & Application
Pour the contents of the Hardener into the Compound container and mix thoroughly for approximately 5 minutes using a suitable blade fitted to a low-speed power mixer operating at approximately 400 rpm.
Ensure all material from the sides and bottom of the container is fully incorporated. Do not aerate the mixture.
Pour the mixed epoxy grout slowly from one side only to minimise air entrapment and help achieve a complete, void-free installation.
Temperature Requirements
EPIREZ High Early Strength Epoxy Grout can be used in cooler conditions, with specified working times and cure times available at 15°C. The product should not be applied at temperatures below 10°C.
Why Choose EPIREZ High Early Strength Epoxy Grout?
EPIREZ High Early Strength Epoxy Grout combines non-shrink performance, high compressive strength, fast strength development and good flow in an easy-mixing, aggregate-free formulation. It is designed for demanding machinery and structural grouting applications where durable support and faster curing are important.
Ideal for: epoxy machine grouting, heavy-duty equipment grouting, rail machinery, bridge footings, machinery bases, bearing supports, printing presses, shipboard machinery and industrial epoxy grouting.
Always refer to the current manufacturer technical and safety documentation before use.
