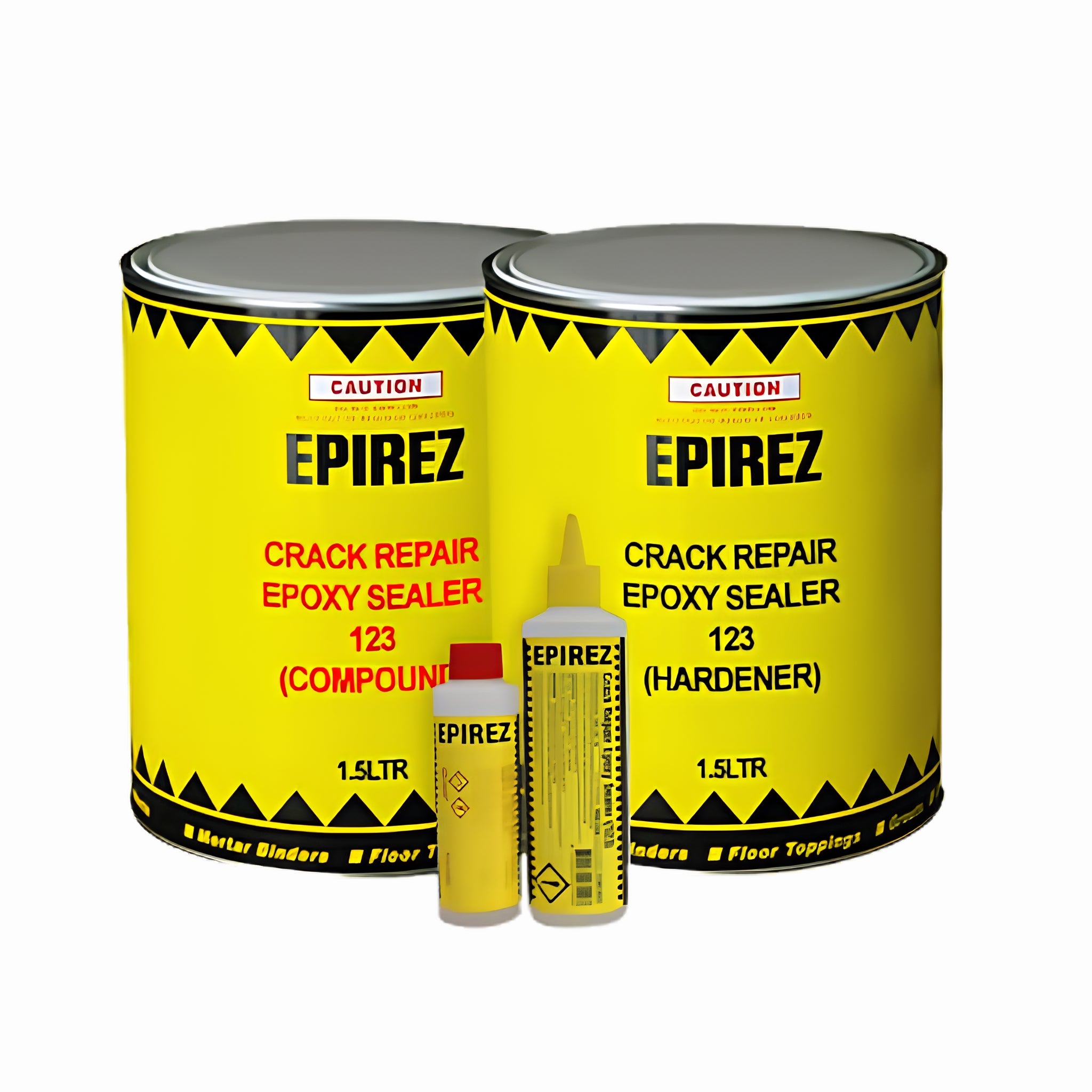

EPIREZ Crack Repair Epoxy Sealer (123)
High-strength epoxy for repairing cracked and damaged concrete.
EPIREZ Crack Repair Epoxy Sealer (123) is a low-viscosity, solvent-free epoxy injection grout designed for concrete crack repair, crack injection and structural concrete repairs. Its low viscosity allows the epoxy to penetrate deep into fine cracks by capillary action, while pressure injection can be used for cracks down to approximately 0.2 mm.
Once cured, EPIREZ Crack Repair Epoxy Sealer forms a strong bond with concrete, providing excellent adhesion along with high compressive and tensile strength. The product can also bond to damp concrete surfaces, making it suitable for a range of concrete repair applications.
Key Features
- Low-viscosity epoxy for deep crack penetration
- Suitable for cracks down to approximately 0.2 mm by pressure injection
- Ideal for concrete crack injection and structural repairs
- Bonds to damp concrete surfaces
- Solvent-free, 100% solids formulation
- High strength and excellent adhesion
- Chemical resistant
- Suitable for gravity-fed and pressure injection applications
Applications
EPIREZ Crack Repair Epoxy Sealer is suitable for a wide range of concrete crack repair and structural repair applications, including:
- Crack injection in concrete
- Repair of cracked and damaged concrete
- Spalled concrete repairs
- Bridge decks
- Concrete columns
- Fine gap grouting
- Tunnels
- Stopping leaks in concrete
- Structural concrete repairs
- Concrete structures
Product Benefits
The low mixed viscosity of EPIREZ Crack Repair Epoxy Sealer allows it to flow into fine cracks and voids, helping restore the continuity of cracked concrete. For larger or more critical repair projects, the product can be pressure injected using suitable injection equipment.
For smaller suitable cracks, the epoxy can also be applied using a gravity-fed method, allowing it to penetrate the crack until the crack is filled.
Technical Information
| Property | Typical Value |
|---|---|
| Mixing Ratio | 1 part Hardener : 2 parts Compound by volume |
| Work Time at 25°C | Approximately 30 minutes |
| Cure Time at 25°C | Approximately 24 hours |
| Initial Mixed Viscosity | 0.3 Pa·s |
| Solids Content | 100% |
| Density | 1.08 g/cm³ |
| Adhesive Bond Strength to Concrete | 2.7 MPa (concrete failure) |
| Water Permeability | 4 × 10-17 m/s |
| Coverage | Approximately 1 m² at 1 mm thickness per 1 kg |
Surface Preparation
For best results, concrete surfaces must be clean, sound and free from loose material, oil, grease and existing coatings. New concrete should be at least 28 days old. Depending on the condition of the substrate, cleaning may include high-pressure washing, captive blasting or acid etching with a suitable concrete cleaner.
For critical applications, polished concrete or frequently wet surfaces, porous concrete may require priming with a suitable EPIREZ epoxy primer before application.
Mixing & Application
EPIREZ Crack Repair Epoxy Sealer is supplied as a pre-measured two-component epoxy system. Mix the Hardener and Compound at the specified 1:2 volume ratio using a low-speed mixer at approximately 400 rpm. Avoid introducing air into the mixture during mixing.
For epoxy crack injection, the crack is prepared and sealed, with injection nipples installed at suitable intervals. The mixed epoxy is then injected from the lowest point using a high-pressure injection gun until the crack is filled.
For suitable smaller repairs, the gravity-feed method can be used by pouring small quantities of epoxy into the prepared crack and allowing the product to penetrate until the crack no longer accepts additional material.
Coverage
1 kg of EPIREZ Crack Repair Epoxy Sealer covers approximately 1 m² at 1 mm thickness.
Actual coverage will depend on crack dimensions, depth, substrate condition and the application method.
Why Choose EPIREZ Crack Repair Epoxy Sealer?
If you need a reliable epoxy for concrete crack repair, EPIREZ Crack Repair Epoxy Sealer provides a practical solution for filling and repairing fine concrete cracks. Its low viscosity, deep penetration, high strength and strong adhesion make it suitable for both small gravity-fed repairs and more demanding pressure-injection applications.
Ideal for: concrete crack repair, structural crack injection, fine crack filling, bridge deck repairs, concrete columns, tunnels and other concrete structures.
Always refer to the current manufacturer technical and safety documentation before use.
