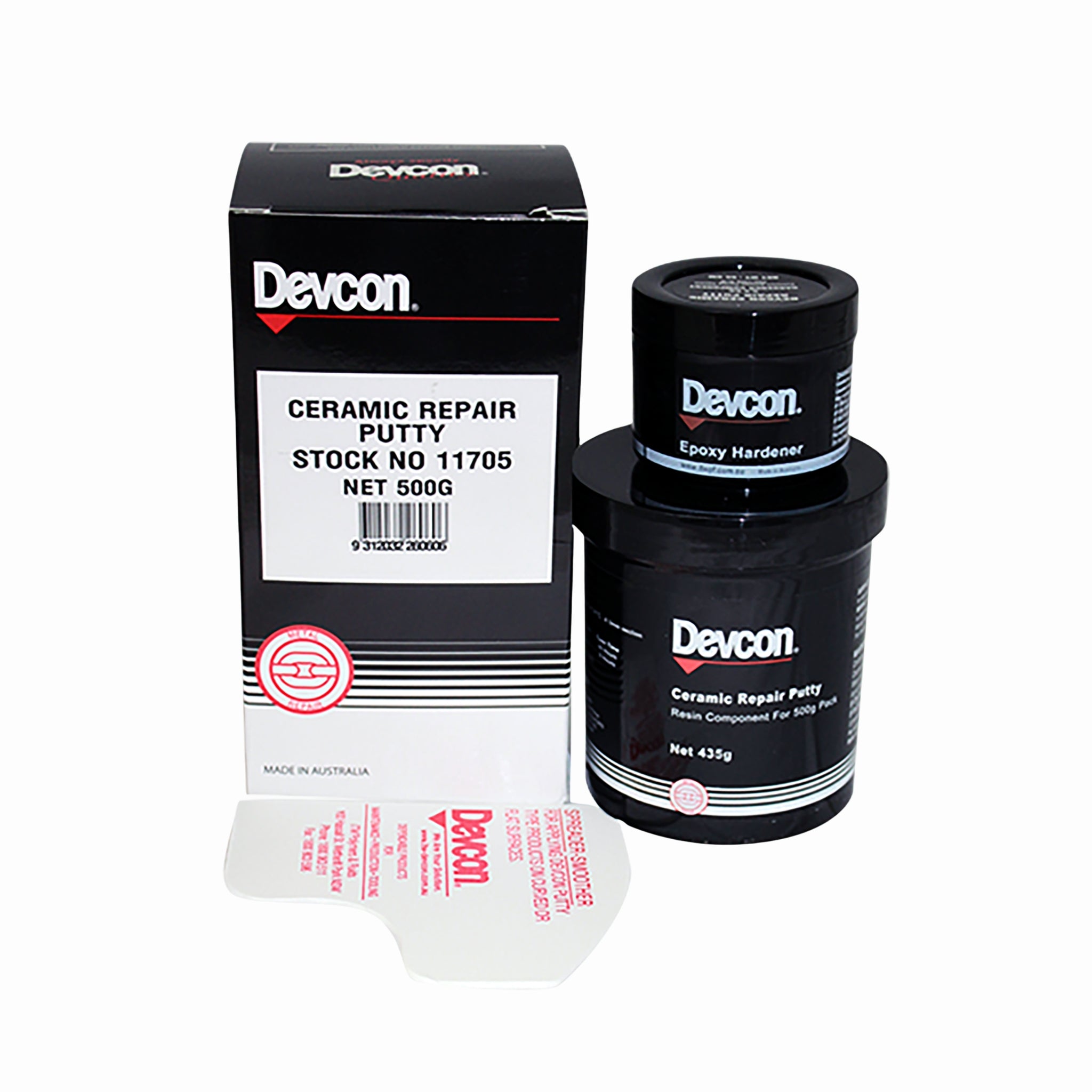

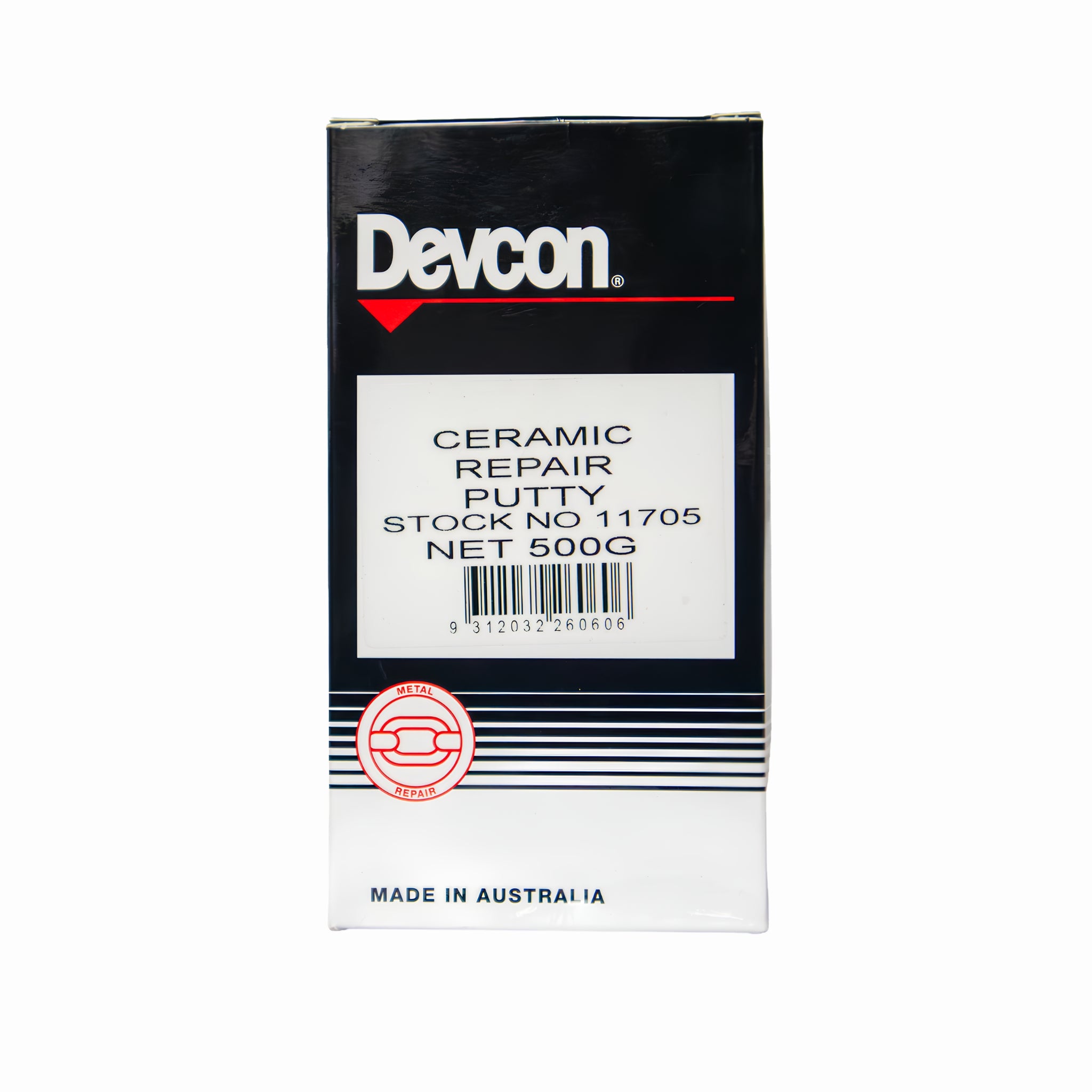

Ceramic Repair Putty – Ceramic Filled Epoxy Repair Compound
Ceramic Repair Putty is a high-performance, trowelable, ceramic-filled epoxy repair compound designed for rebuilding worn or damaged industrial equipment.
Its non-sag, creamy paste consistency makes it suitable for rebuilding and repairing equipment surfaces where resistance to corrosion, cavitation, erosion and chemical exposure is required.
Ceramic Repair Putty is designed for applications including worn pump casings and suction plates, tube sheets, heat exchangers, circulating water equipment, chutes, hoppers, butterfly valves and gate valves.
Key Features and Benefits
- Ceramic-filled epoxy: Designed for rebuilding worn and damaged equipment.
- Excellent chemical resistance: Suitable for demanding industrial environments.
- Corrosion resistance: Designed to protect repaired equipment surfaces.
- Cavitation resistance: Suitable for equipment exposed to cavitation.
- Erosion resistance: Designed for surfaces exposed to erosive conditions.
- Non-sag putty: Creamy paste consistency supports vertical applications.
- Trowelable formulation: Can be applied directly to prepared repair areas.
- Machinable after cure: Can be machined, drilled or painted after functional cure.
Where Can Ceramic Repair Putty Be Used?
Ceramic Repair Putty is designed for rebuilding and repairing industrial equipment, including:
- Worn pump casings
- Pump suction plates
- Tube sheets
- Heat exchangers
- Water-circulating equipment
- Worn chutes
- Hoppers
- Butterfly valves
- Gate valves
Coverage
| Application Thickness | Coverage |
|---|---|
| 6.35 mm (1/4") | Approximately 939 cm²/kg |
Recommended Application Thickness
Apply Ceramic Repair Putty at a minimum thickness of 6.35 mm (1/4").
For vertical surface applications, the product can be trowelled up to 1/2" (12.7 mm) without sagging.
Work the material firmly into the substrate to achieve maximum surface contact.
Surface Preparation
Thorough surface preparation is important for achieving strong adhesion.
- Clean the surface with isopropanol alcohol or acetone to remove oil, grease and dirt.
- Grit blast using 8–40 mesh grit or grind with a coarse wheel or abrasive disc pad.
- Create a surface profile of approximately 3–5 mils with defined edges.
- Do not feather-edge existing epoxy.
- Clean the surface again to remove dust and other contaminants.
- Repair the surface as soon as possible after preparation.
For metals exposed to seawater or other salt solutions, grit blast and high-pressure water blast the area, then leave it overnight. Repeat blasting to remove soluble salts and perform a chloride contamination test. Soluble salt content should be no more than 40 ppm.
Working Conditions
The ideal application temperature for Ceramic Repair Putty is 13°C to 32°C.
In cold working conditions, heat the repair area to approximately 38°C to 43°C before applying the epoxy and maintain this temperature during curing.
Applying epoxy below 21°C lengthens functional cure and pot life times. Applying above 21°C shortens them.
Mixing Instructions
Ceramic Repair Putty has a mixing ratio of 4.3:1 by volume and 7:1 by weight.
- Add the Hardener to the Resin.
- Mix thoroughly using a screwdriver or similar tool.
- Continuously scrape material from the sides and bottom of the container.
- Continue mixing until a uniform, streak-free consistency is achieved.
For intermediate-size containers, place the Resin and Hardener on a flat disposable surface and mix using a trowel or wide-blade tool.
For larger buckets, use a T-shaped mixing paddle or suitable propeller mixer and thoroughly fold the putty until the Resin and Hardener are completely homogeneous.
Application
Spread the mixed Ceramic Repair Putty over the prepared repair area at a minimum thickness of 6.35 mm.
Work the material firmly into the substrate to maximise surface contact.
The product reaches functional cure in approximately 16 hours, after which it can be machined, drilled or painted.
Bridging Large Gaps and Holes
For large gaps or holes, place suitable reinforcement between the repair area and Ceramic Repair Putty before application.
- Fiberglass sheet
- Expanded metal
- Mechanical fasteners
Vertical Surface Applications
Ceramic Repair Putty can be trowelled onto vertical surfaces up to 1/2" (12.7 mm) thick without sagging.
Cure for Maximum Physical Properties
For maximum physical properties, cure at room temperature for 2.5 hours, followed by a heat cure for 4 hours at 93°C.
Important Product Considerations
- Minimum application thickness is 6.35 mm.
- Vertical applications can be trowelled up to 12.7 mm without sagging.
- Ideal application temperature is 13°C to 32°C.
- Below 21°C, functional cure and pot life times increase.
- Above 21°C, functional cure and pot life times decrease.
- Do not drop, shock load or heavily load the repaired area.
Technical Specifications
| Specification | Technical Data |
|---|---|
| Product | Ceramic Repair Putty |
| Product Type | Ceramic-filled epoxy repair compound |
| Colour | Dark Blue |
| Mix Ratio by Volume | 4.3:1 |
| Mix Ratio by Weight | 7:1 |
| Mixed Viscosity | Putty |
| Pot Life @ 24°C | 25 minutes |
| Recoat Time | 2–4 hours |
| Functional Cure | 16 hours |
| Recommended Thickness | 6.35 mm (1/4") |
| Maximum Vertical Thickness | 12.7 mm (1/2") without sagging |
| Specific Gravity | 1.69 g/cm³ |
| Specific Volume | 0.59 cm³/g |
| Coverage | Approximately 939 cm²/kg at 6.35 mm thickness |
| Ideal Application Temperature | 13°C to 32°C |
Important: Always read the current product Technical Data Sheet and Safety Data Sheet before surface preparation, mixing or application.
